N2O Membrane Compressor Nitrous Oxide Diaphragm Compressors
Advantages of Minwen N2O diaphragm compressors.
All Minwen diaphragm compressors are designed according to the specific needs from different clients. The diaphragm of the metal diaphragm compressor completely separates the gas from the hydraulic oil system, to ensure the purity of the gas and no pollution to the gas. Meanwhile, advanced manufacturing technology and accurate membrane cavity design technology are adopted to ensure the service life of the diaphragm compressors.
Minwen N2O diaphragm/ membrane compressors have the characteristics of low speed, high component strength, stable operation, long service life and convenient maintenance. It integrates compressor, gas-liquid separator, filter, two position four-way valve, safety valve, check valve, explosion-proof motor and chassis. Minwen diaphragm compressors have the advantages of small volume, light weight, low noise, good sealing performance, easy installation, simple operation.
Diaphragm compressor structure is composed of motor, base, crankcase, crankshaft linkage mechanism, cylinder components, crankshaft connecting rod, piston, oil and gas pipeline, electric control system and some accessories.

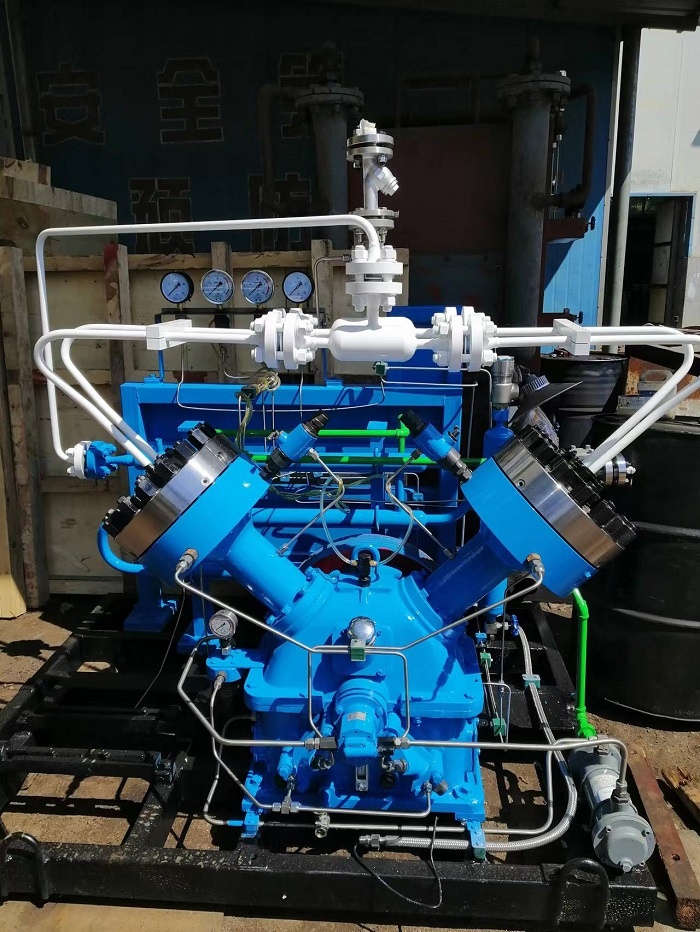

Details of Minwen 17Nm3/hr, 60bar water-cooled Nitrous Oxide N2O Diaphragm Compressor.
|
Medium |
N2O |
Quantity |
1 piece |
|
Inlet pressure MPa (G) |
0.1MPa |
Intake air temperature |
30 ℃ |
|
Exhaust pressure Mpa (G) |
6 |
Exhaust temperature (before cooling) |
≤140°C |
|
Flow Nm3/h |
17 |
Exhaust temperature (after cooling) °C |
≤45 |
|
Model |
G3V-17/60 |
Compression stage |
2 |
|
Structure type |
V |
Number of cylinders |
2 |
|
Cylinder diameter mm |
|
Piston stroke mm |
130 |
|
Crankshaft speed r/min |
400 |
Voltage V |
380 |
|
Cooling method |
Water cooled |
Cooling water flow t/h |
2 |
|
Shaft power KW |
≤7 |
Motor speed r/min |
1460 |
|
motor |
YBX3-160M-4-11KW-50Hz |
|
|
|
Dimensions mmxmmxmm |
~ 2200*1200*1600 |
Unit weight T |
~ 2.5 ton |
|
Transfer method |
Belt drive |
|
|
|
Material of parts in contact with gas |
Cylinder head, piping |
45, 20 |
|
|
Diaphragm |
00Cr15Ni5 |
|
|
|
Air valve |
Stainless steel |
|
|
|
Scope of supply |
Main engine, motor, skid-mounted chassis, air inlet filter, cooler, exhaust safety valve, pump station, primary meter and control elements of the unit, special tools, accompanying documents, accompanying spare parts, starting control cabinet, etc. Note: The final technical agreement shall prevail. |
||
|
Options |
Automatic light-load start-stop device (✖) Flow regulating device (✖) |
||
If you have any inquiries, we would like to hear from you. Our Engineers Team will contact you as early as we can.
