Minwen's diaghragm compressors are often used in applications where high purity gases are required, such as in the medical or semiconductor industries. Due to their design, diaphragm compressors are less likely to contaminate the gas being compressed.



Details

High Quality Diaphragm Membrane Compressors China Manufacturer

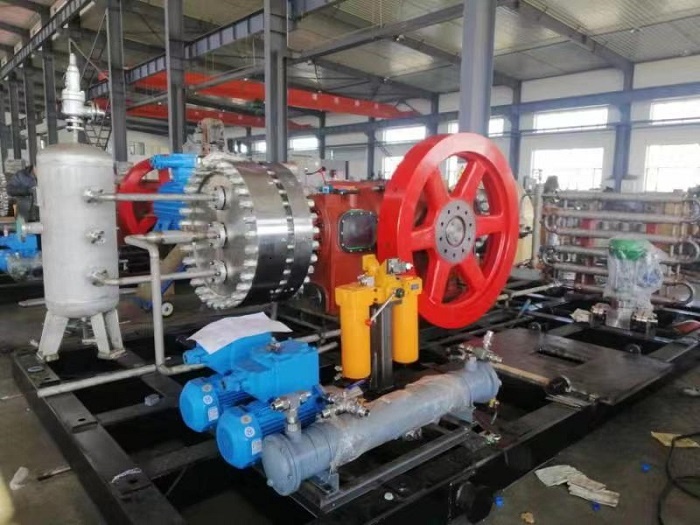

A diaphragm compressor is a type of compressor that uses flexible membranes, or diaphragms, to compress a gas. The diaphragms move in and out, causing the gas to be compressed and then expelled through the outlet port. These diaphragm compressors are often used in applications where high purity gases are required, such as in the medical or semiconductor industries. Due to their design, diaphragm compressors are less likely to contaminate the gas being compressed, making them a popular choice for these industries.

Minwen diaphragm compressors designed and manufactured by our factory are divided into four categories: V, Z, D and L, totally 26 Series and nearly 900 products. The maximum volume flow rate of a single machine is 3000nm3/h, the maximum pressure design range is 100MPa, the maximum piston force is 250kN, and the maximum driving power is 450KW.

Below is the models of our Z type diaphragm compressors for your kind information. We have other types of diaphragm compressors to meet your specific demands. Welcome to send us your specific requirement on flow rate, inlet and outlet pressure, so our Engineers Team will contact you as early as we can.

Model

Inlet pressure

Exhaust pressure

Flow

Power

Speed

MPa(G)

MPa(G)

Nm3/h

W

r/min

GZ3-110/ 10-70

1

7

110

15

360

GZ3-60/6

Atm. press

0.6

60

18.5

430

GZ3- 100/ 150-650

15

65

100

22

400

GZ3-300/ 146- 166

14.6

16.6

300

18.5

400

GZ3- 178/21.26-35.5

2. 126

3.55

178

15

400

G5Z- 15/ 1000

10~20

100

15

15

330

G5Z-50/ 176-200

17.6

20

50

11

400

G5Z-20/ 130-450

13

45

20

15

400

G5Z-600/ 184-202

18.4

20.2

600

11

400

H-G5Z- 160/5- 10

0.5

1

160

11

400

2G2.5Z- 10/ 13-200

1.3

20

10

4

400

G2.5Z-50/7.5-25

0.75

2.5

50

7.5

400

G2.5Z- 10/6

Atm. press

0.6

10

7.5

400

G2.5Z-20/ 10-80

1

8

20

7.5

400


In order to ensure that once there is oil pollution, we have a diaphragm rupture alarm. If the diaphragm ruptures during the compression process, the alarm device will alarm and shut down the machine to avoid oil pollution.

From the selection of materials in contact with the gases to the diaphragm structure of the compressor to separate the lubricating oil from the gases, and the diaphragm rupture alarm shutdown, these features ensure that the compressor can maintain the purity of the gas and avoid various pollution.
