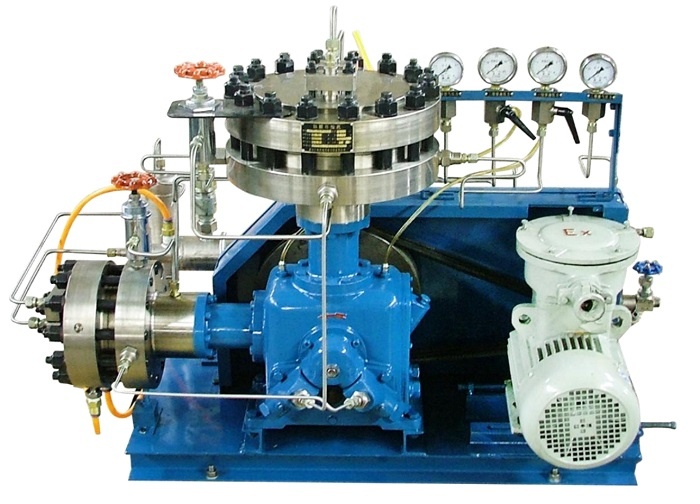

Minwen diaphragm compressors designed and manufactured by our factory are divided into four categories: V, Z, D and L, totally 26 Series and nearly 900 products. The maximum volume flow rate of a single machine is 3000nm3/h, the maximum pressure design range is 100MPa, the maximum piston force is 250kN, and the maximum driving power is 450KW.

Below is the models of our Z type diaphragm compressors for your kind information. We have other types of diaphragm compressors to meet your specific demands. Welcome to send us your specific requirement on flow rate, inlet and outlet pressure, so our Engineers Team will contact you as early as we can.

Model	Inlet pressure	Exhaust pressure	Flow	Power	Speed
	MPa(G)	MPa(G)	Nm3/h	W	r/min
GZ3-110/ 10-70	1	7	110	15	360
GZ3-60/6	Atm. press	0.6	60	18.5	430
GZ3- 100/ 150-650	15	65	100	22	400
GZ3-300/ 146- 166	14.6	16.6	300	18.5	400
GZ3- 178/21.26-35.5	2. 126	3.55	178	15	400
G5Z- 15/ 1000	10~20	100	15	15	330
G5Z-50/ 176-200	17.6	20	50	11	400
G5Z-20/ 130-450	13	45	20	15	400
G5Z-600/ 184-202	18.4	20.2	600	11	400
H-G5Z- 160/5- 10	0.5	1	160	11	400
2G2.5Z- 10/ 13-200	1.3	20	10	4	400
G2.5Z-50/7.5-25	0.75	2.5	50	7.5	400
G2.5Z- 10/6	Atm. press	0.6	10	7.5	400
G2.5Z-20/ 10-80	1	8	20	7.5	400

In order to ensure that once there is oil pollution, we have a diaphragm rupture alarm. If the diaphragm ruptures during the compression process, the alarm device will alarm and shut down the machine to avoid oil pollution.

From the selection of materials in contact with the gases to the diaphragm structure of the compressor to separate the lubricating oil from the gases, and the diaphragm rupture alarm shutdown, these features ensure that the compressor can maintain the purity of the gas and avoid various pollution.
