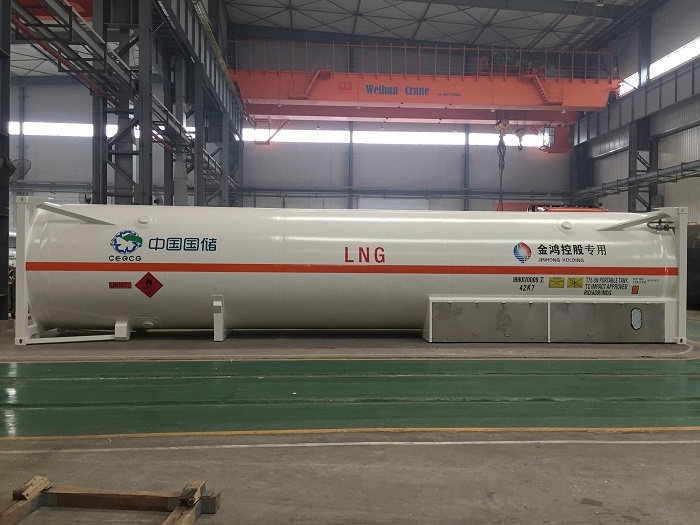

40 Feet T75 Un Portable LNG ISO Tank Container Truck-Mounted LNG Lorry Tanker
Portable T75 40feet 0.8MPa LNG ISO Tank Containers for LNG Transportation
An LNG ISO tank has two containers — an inner tank containing LNG and an outer tank with insulation materials. Full containment tanks are most common and vary in size based on their purpose. Transporting LNG in ISO tanks is an innovative and effective alternative to conventional natural gas distribution.
An LNG ISO tank has two containers — an inner tank containing LNG and an outer tank with insulation materials. Full containment tanks are most common and vary in size based on their purpose. Transporting LNG in ISO tanks is an innovative and effective alternative to conventional natural gas distribution.
I. Design code and manufacture standard of LNG ISO Tanks
1) ASME VIII DIV 1-2017Ed, T75 UN PORTABLE TANK
2) IMDG, TIR, UIC, CSC
3) RID/ADR, ISO 1496-3, FRA, CFR49, TC, DOT.
II. T75 40 feet LNG ISO tank technical specification
II. T75 40 feet LNG ISO tank technical specification
1. Product Name: 40 feet T75 portable tank
2. Nominal Capacity: 45.7m3
3. Loading Media: LNG; liquid C2H4)
4. Working Pressure: 0.8MPa
5. Design Temperature: -196C
6. Insulation: High vacuum multi-layer insulation
7. Tank Material
Inner shell and head: SA-240M 304 / Outer shell and head: Q345
8. Tare Weight: 11700kgs
9. Max. Loading Weight: 19460kgs
10. Full Weight: 36000kgs
11. Outer Dimension(LxWxH): 12192mm x 2438mm x 2591mm
12. Standard Configuration: Cryogenic valves are Chinese vales and HEROSE valves, WIKA liquidometer, pipe relief valves are imported, without self-supercharger; other information refer to valve list
