20Feet 22bar LCO2 N2O ISO Tank Containers ASME Code Lorry Tankers

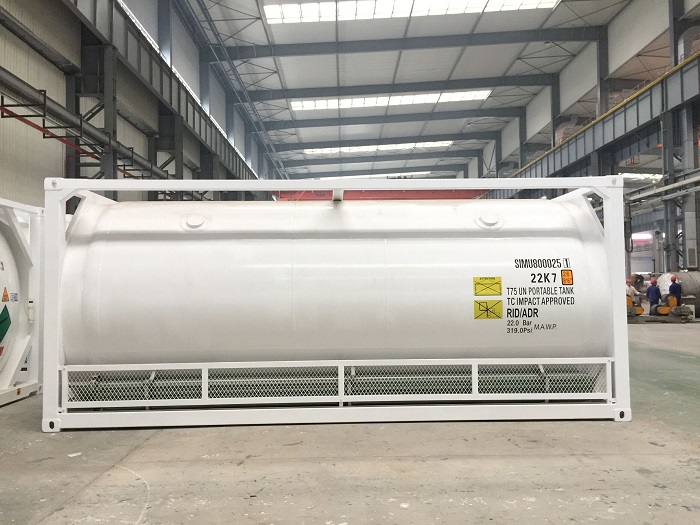

T75 20ft 22bar LOX/ LIN/ LAr/ LCO2/ LN2O ISO Tank Container
The T75 cryogenic ISO tanks are double wall vacuum with state-of-the-art multi-layered super-insulation specially designed with international approvals for products such as Nitrogen (LIN), Oxygen (LOX), Argon (LAR), Carbon Dioxide (CO2), Nitrous Oxide (N2O), and LNG. In addition, this kind of ISO tanks container is also an international multimodal transportation tool, which can be applied to road, rail, and sea transportation. The tank container is used as the transportation method, which can load the maximum quantity of goods under the premise of meeting the international standard weight limit, which is the most economical transportation method.
Main specification of Minwen's LOX/ LIN/ LAr/ LCO2/ LN2O 20feet ISO Tanks
1. Loading medium: LOX, LNI, LAR, LCO2, LN2O
2. Capacity: 19500L
3. Working Pressure: 2.2MPa
4. Overall dimension (LxWxH): 6058mmx2438mmx2591mm
5. Design temperature: -196C to +20C
6. Tank Material:
Inner: SA-240M 304
Outer: SA-516 Gr.485
7. Insulation Method: High vacuum multi-layer ISO tanks
8. Tare Weight: 9180KGS
9. Oil Painting: Brand is HEMPEL, tank and frame are White
10. Connector Type: thread connection
11. Design Code: RID/ADR, IMDG, ASME VIII DIV 1, FRA TIR, UIC, CSC, TC, UK-Dft, CFR49; ISO 1496/3; ISO Standard 1161
12. Configuration: All valves are Heroes or Chinese brands.
