T75 20feet ISO Tank Container for LOX/ LIN/ LAr/ LCO2/ LN2O

T75 20feet ISO Tank Container for LOX/ LIN/ LAr/ LCO2/ LN2O
  • T75 20feet ISO Tank Container for LOX/ LIN/ LAr/ LCO2/ LN2O
  • T75 20feet ISO Tank Container for LOX/ LIN/ LAr/ LCO2/ LN2O

Minwen's T75 ISO tanks adopt high vacuum multi-layer insulation method to ensure that the tank has excellent thermal insulation performance and low daily evaporation rate.



Details

T75 20ft ISO Tank Container for LOX/ LIN/ LAr/ LCO2/ LN2O

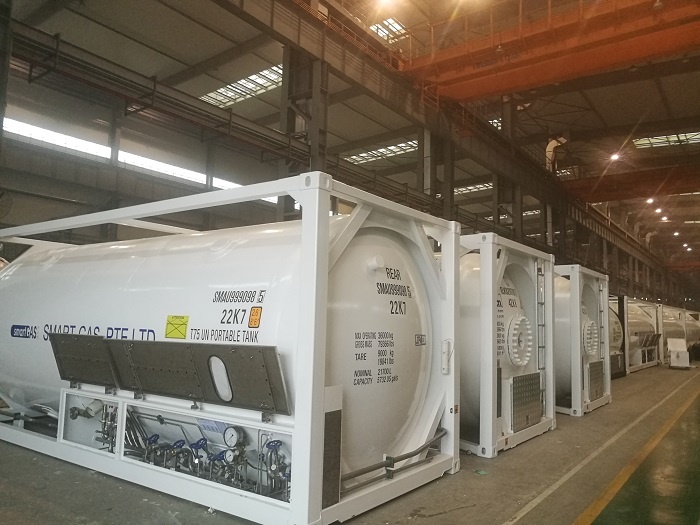

The T75 cryogenic ISO tanks are double wall vacuum with state-of-the-art multi-layered super-insulation specially designed with international approvals for products such as Nitrogen (LIN), Oxygen (LOX), Argon (LAR), Carbon Dioxide (CO2), Nitrous Oxide (N2O), and LNG. In addition, this kind of ISO tanks container is also an international multimodal transportation tool, which can be applied to road, rail, and sea transportation. The tank container is used as the transportation method, which can load the maximum quantity of goods under the premise of meeting the international standard weight limit, which is the most economical transportation method.

Main specification of Minwen's LOX/ LIN/ LAr/ LCO2/ LN2O 20feet ISO Tanks

1. Loading medium: LOX, LNI, LAR, LCO2, LN2O

2. Capacity: 19500L

3. Working Pressure: 2.2MPa

4. Overall dimension (LxWxH): 6058mmx2438mmx2591mm

5. Design temperature: -196C to +20C

6. Tank Material:

Inner: SA-240M 304

Outer: SA-516 Gr.485

7. Insulation Method: High vacuum multi-layer ISO tanks

8. Tare Weight: 9180KGS

9. Oil Painting: Brand is HEMPEL, tank and frame are White

10. Connector Type: thread connection

11. Design Code: RID/ADR, IMDG, ASME VIII DIV 1, FRA TIR, UIC, CSC, TC, UK-Dft, CFR49; ISO 1496/3; ISO Standard 1161

12. Configuration: All valves are Heroes or Chinese brands.
