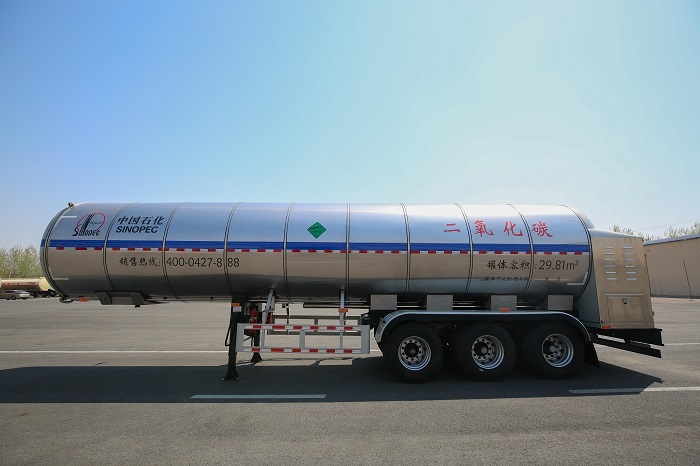

PUR Insulated CO2 Semi-trailers LCO2 Transportation Lorry Tankers

PUR Insulated CO2 Semi-trailers LCO2 Transportation Lorry Tankers
  • PUR Insulated CO2 Semi-trailers LCO2 Transportation Lorry Tankers
  • PUR Insulated CO2 Semi-trailers LCO2 Transportation Lorry Tankers
  • PUR Insulated CO2 Semi-trailers LCO2 Transportation Lorry Tankers

The proved design of Minwen's LCO2 semi-trailers allows simple operation, short loading and unloading times.The special insulation applied provides least possible evaporation rate under extreme temperatures of different countries.



Details

PUR Insulated CO2 Semi-trailers LCO2 Transportation Lorry Tankers

Cryogenic semi-trailers provide logistics efficiency when the semi-trailer travels very long distances or waits longer periods at customs being exposed to direct sun shine, while crossing the borders. The CO2 semi-trailers are user-friendly and have been developed as a result of close cooperation with national and international gas companies. It is possible to use PUR insulated CO2 semi-trailers without facing any disadvantages as long as the shipment has not been exposed to direct sun shine at extreme outside temperatures for long periods such as waiting at customs or haulage longer than a week. Moreover, maintenance is simplified with highly accessible equipment panels and the piping instrumentation design assures maximum efficiency and safety.

Minwen's 28Ton polyurethane foam insulation LCO2 Tanker Truck as below.

1. Medium: Liquid CO2

2. Geometric volume: 28.43m3

3. Effective volume: 27632kgs (~28 Ton)

4. Design pressure: 2.2MPa

5. Operating temperature: -40C~+50C

6. Tank Body material: WH590E

7. Heat Preservation: Polyurethane foam

8. Thickness of insulation layer: 200mm

9. Protection cover: Stainless steel

10. Rated weight: 27632kgs

11. Traction Mass: 40000kgs

12. Axles distance (mm): 6940+1310+1310

13. Axles: Three Axles

14. Anti lock braking system: Available

15. Empty weight: 12368kgs

16. Dimension (mm): 13410x2500x3610 (LxWxH)
