Liquid Carbon Dioxide CO2 Semi-trailers LCO2 Road Tankers

The proved design of Minwen's LCO2 semi-trailers allows simple operation, short loading and unloading times.The special insulation applied provides least possible evaporation rate under extreme temperatures of different countries.

Online Inquiry Email Us

Details

Liquid Carbon Dioxide CO2 Semi-trailers LCO2 Road Tankers

Cryogenic semi-trailers provide logistics efficiency when the semi-trailer travels very long distances or waits longer periods at customs being exposed to direct sun shine, while crossing the borders. The CO2 semi-trailers are user-friendly and have been developed as a result of close cooperation with national and international gas companies.

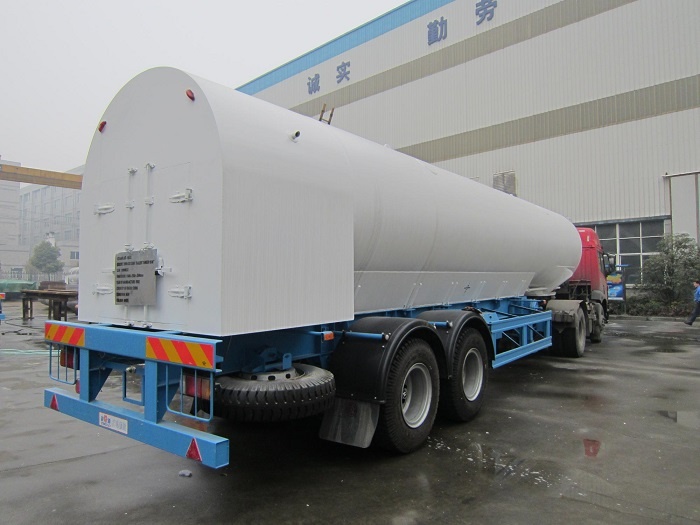

Minwen's 20 Ton Liquid CO2 semi-trailer lorry tanker, Insulation type: multi layer heat insulation

NO	Items	Inner vessel		Outer vessel
1	Design pressure MPa	2.2		-0.1（outer）
2	Working pressure MPa	2.2		-0.1（outer）
3	MAWP MPa	2.2		/
4	Design temperature ℃	-40		-40～50
5	Working temperature ℃	-40		normal
6	Air tightness test	2.2	HLD
7	G. Vol m3	20		4.6 (interlayer)
8	E. Vol m3	19		/
9	Medium	LCO2		Multi layer
10	Main material	16Mndr		Q345R
11	Treatment	Internal and external surface degreasing		Sanding and coating
12	Corrosion allowance mm	0		0
13	Joint efficiency	1		0.85
14	Filling rate	95%		/
15	Static evaporation %/d	/
16	Seal off vacuum degree Pa	≤8×10-2
17	Leakage of vacuum interspace	≤1×10-6 Pam3/s
18	External Dimensions mm	10660x2500x3400
19	Type	With chassis
20	Tare weight Kg	~13650
21	Fully loading weight Kg	~33200
22	Design service life	10years (for trailer)/ 15years (for tank)
23	Vacuum design life	5 years
24	Open pressure for safety valve	2.31Mpa
25	Sort	C2
26	Axles	Triaxiality BPW with air suspension
27	Level Gauge	WIKA
28	Ties	Double coin (12R22.5-18PR) Tubeless
29	Wheel	Safeway
30	Pin	50# king pin
31	Speed Km/H	≤80(Normal road), ≤20(Turn)
32	Main design code	TSG R0005-2011, NB/T47058-2017,
33	Other	ABS, JOST A400
