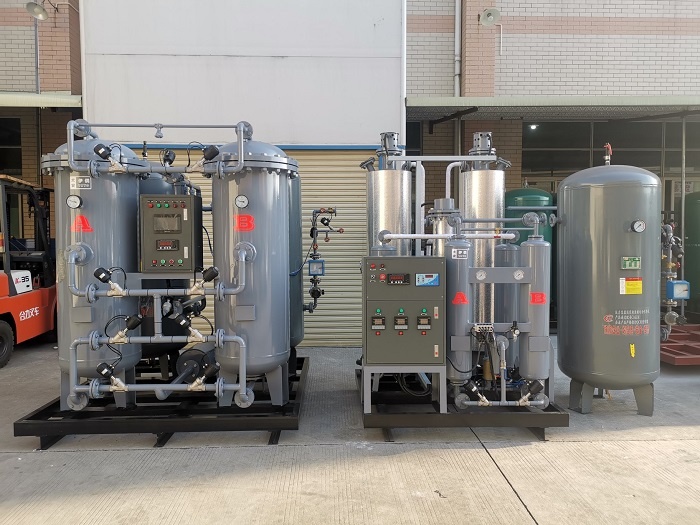

PSA Nitrogen Generator with N2 Purification Plant
PSA Nitrogen Generator with N2 Purification Plant
Our onsite PSA Nitrogen Generators are widely used in many industry, such as Food packing, Food storing, Electric & Electronic industry, Petrogas & Oil field, Chemicals & Petro-chemicals, Coal-mine, Metallurgy, Pharmacy, SMT, Fire-resistance, lab, Air driving, etc.
The nitrogen purity from our PSA nitrogen plants can reach up to 99.99% without nitrogen purification equipment. If we add the nitrogen purification equipment, the N2 purity can reach up to 99.999%.
For more details, please feel free to send me inquiries.
|
QTY |
1set |
|
Model |
RDCH595-30 |
|
Capacity |
30Nm3/h |
|
Service pressure |
8bar |
|
Pressure outlet |
4bar |
|
Residual oxygen |
＜3ppm |
|
Residual carbon dioxide |
＜2ppm |
|
Catalyst |
200KG |
|
Power supply |
5.8KW |
|
Recycle cooling requirement |
2.5ton/hr |
Characteristic of Minwen Onsite PSA Nitrogen Plants.
1. Run Automatically
- Control By Programmable Logic Controller (PLC)
- Control the inlet compressed gas in and out automatically
- Monitor and alarm the abnormal working status
- Display parameter values
2. Operating of the PSA N2 generators
- Plug and play
- One-press On/ Off
- One-press Start/ Stop
3. Long Lifespan of PSA N2 generators
- Advanced absorber structure
- Reliable and smart programe design
- Vortex honeycomb type gas distribution structure
- Blizzard-type CMS filling strengthen the gas flow
- Components from high-end supply chain
4. Installation Site of the PSA N2 generators
- Due to the severe ambient conditions and in order to protect the PSA N2 plant from driving rain and direct sunlight, it is strongly recommended to install the PSA unit in a closed shelter, at least a roof covering the valve skid and the compressor shall be supplied.
