Our PSA nitrogen plants have the advantages of compact, fully automatic operation, fast start and stop, low operating cost, convenient production and maintenance.



Details

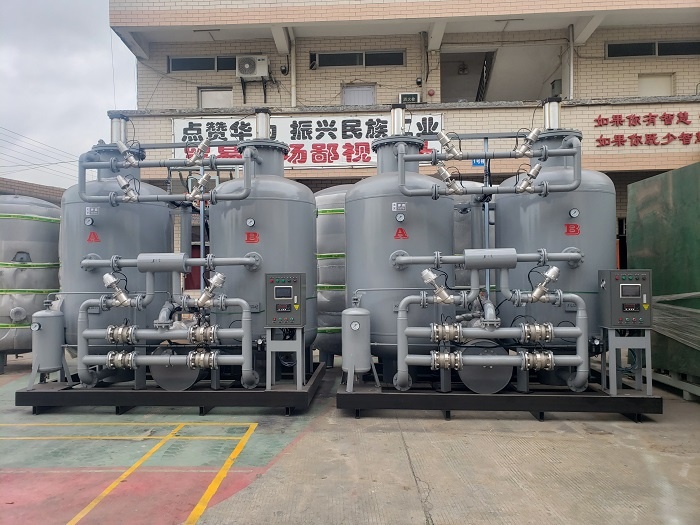

Onsite PSA Nitrogen Plant Automatic N2 Gas Generator Manufacturer

Nitrogen is normally used as protective gas or atmosphere gas for reduction and carburetor. Under-circumstance of room temperature and high pressure, oxygen and nitrogen are separated by different-diffusion rate in CMS. Nitrogen purity and output volume is adjustable to meet customer’s requirements.

PSA technique (Pressure Swing Adsorption, PSA for short) is a kind of advanced gas separation technology, based on physical adsorption of gas molecule on the internal surface of adsorbent (porous solid substances), using adsorbents in the same pressure easy to absorb the high boiling point gas, difficult to absorb low boiling point gas, and under high pressure adsorption amount of absorbed gas increases, under low pressure adsorption of absorbed gas to reduce the features to achieve gas separation. This process under pressure adsorption of impurities, under reduced pressure adsorption of impurities, make the adsorbent regeneration, is the PSA cycle.

System overview as below



Equipment list of 50Nm3/[email protected]% PSA nitrogen Plant, with nitrogen boosted to 10bar.

No

ITEM

SPECIFICATION

P/N

QTY

1

Air Compressor

Flow rate: 5.0Nm³/min

Pressure: 0.8Mpa

Voltage: 380v 50hz 3p

HD-30

1 UNIT

2

Air receiver

Volume: 1.0m³

Pressure: 0.8Mpa

CG1.0/0.8

1 UNIT

3

Air dryer

Flow rate: 6.8Nm³/min

Pressure:1.0Mpa

Dew Point: 2-6℃

TQ-50AS

1 UNIT

4

Air filter kit

Flow Rate: 6.8Nm³/min

TQ-060KIT

1 UNIT

5

PSA Nitrogen Generator

Flow Rate: 50Nm³/h

Purity: 99.99%

Pressure: 0.65Mpa

Voltage: 220V 50/60Hz 1P



TQN50-49

1 UNIT

6

N2 Booster

Flow rate: 50Nm³/h

Inlet Pressure: 0.6Mpa

Outlet Pressure: 1.0Mpa

TQNB6-150

1 UNIT
