Minwen's portable cryogenic liquid cylinders adopts the advanced techniques, with high-performance insulation system; easy to use, safe and reliable, economical and durable. We would like to hear from you for your inquiries on our portable liquid cylinder



Details

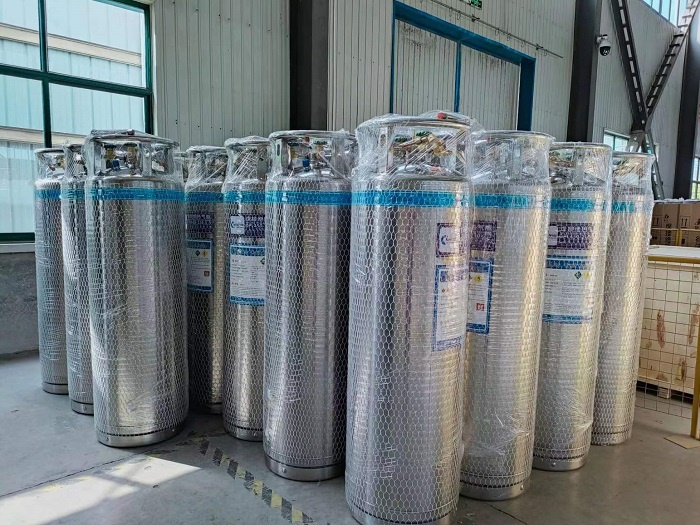

210 liter Cryogenic Storage Dewar Flasks Portable Liquid Cylinders
Product features of Minwen portable cryogenic dewar tanks
1. The cryogenic liquid cylinders are easy to use, safe and reliable, economical and durable.
2. The support system of the inner vessel is made of stainless steel to achieve the purpose of low heat loss and high strength.
3. It is easy to use and can be operated independently by a single person.
4. Clients can store pure cryogenic liquid with large storage capacity.
5. The internal pressure of the cryogenic cylinders will rise during the deactivation phase after flling. The cryogenic cylinders have a high-performance insulation system, so the pressure rise rate is low. Under normal circumstances, there is no need to reduce the pressure through a safety valve.
6. The built-in supercharger and vaporizer of the cryogenic cylinders can realize continuous supply of either gas or liquid. There is no need to install an external vaporizer under the designed capacity.


Technical Parameter of 210 liter portable cryogenic liquid cylinders

Model

DPL450-210-1.4/2.3/2.88

Max liquid capacity(L)

210

Medium

liquid oxygen, liquid argon, liquid nitrogen, liquid carbon dioxide, LNG.

Usable liquid capacity(L)

198

Size(mm)

φ511*1726

Empty  weight(Kg)

127/145/163

Servise pressure(Barg)

4/23/28.8

First pressure relief valve setting(Barg)

16.8/27/34.5

Bursting disc setting/Second pressure relief(Barg)

24.1/41/52

Normal evaporation rate(LN2)(%/d)

≤2.0

Gas withdraw rate/N2(NM3/h)

9.2

Min working temperature(℃)

-196

Hydraulic test pressure(Barg)

28/46/57.6

Leakage test pressure(Barg)

14/23/28.8

Max filling(Kg)

LO2

226

LN2

160

LAr

279

LCO2

218

LNG

84
