1000Nm3/h-40000Nm3/h VPSA Oxygen Plant O2 Generator

The capabilities of Minwen VPSA oxygen generators range from 1000Nm3/h to 40700 Nm3/h, and purities range from 55% to 93%. The application includes chemical industry, steel, non-ferrous metals, glass, paper manufacturing, sewage treatment, fish farming, e

Online Inquiry Email Us

Details

1000Nm3/h-40000Nm3/h VPSA Oxygen Plant O2 Generator
Philosophy of Oxygen VPSA Plant Technology

The grade of oxygen in air is about 21% and the nitrogen is about 78%. Their total grades are 99%, so if we want to get oxygen from air, we need to separate the oxygen from the nitrogen.

Both nitrogen and oxygen have quadrupole, but the quadrupole of nitrogen (0.31Å) is much bigger than that of oxygen (0.10 Å), so the adsorption capability of nitrogen in the zeolite is much stronger than that of oxygen (the force between nitrogen and surface ions of zeolite is strong). Therefore, when the air is under pressure and passes through the adsorbent bed equipped with zeolite adsorbents, nitrogen is adsorbed by zeolite; for less adsorption, oxygen is enriched in the oxygen phase and outflow the adsorption bed to separate oxygen from nitrogen. When the zeolite adsorption of nitrogen is close to saturation, it stops air flow and lower the pressure of adsorption bed. Adsorbed nitrogen of zeolite can be desorbed out and zeolite becomes renewable and reusable. More than two adsorption beds alternately switch to work to produce continuous oxygen.

The boiling points of argon and oxygen are so close that it is difficult to separate them; the two get enrichment in oxygen phase. So the devices of oxygen separation from air by pressure swing adsorption usually only get oxygen with purity of 90% to 95% (the maximum purity of oxygen is 95.6%, and the rest is argon); compared with the oxygen with the purity above 99.5% from cryogenic air separation device, it is also known as oxygen enrichment.

Equipment List and Supply Scope of Minwen VPSA Oxygen Plants.

No.	Equipment	Model	Qty.	Supply Scope
Powering System

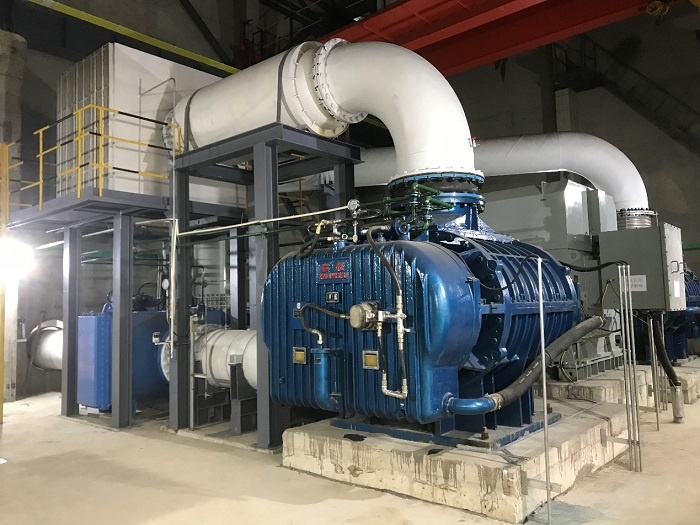

1	Roots Blower	RRG-400	1 Piece
2	High Efficiency Motor	YXKK560-8	1 Piece
3	Vacuum Pump	RRG-445	1 Piece
4	Blower Noise Enclosure	/	1 Piece
Adsorbents
1	Lithium Adsorbent	PU-8	1 Batch
2	Pre-purification Adsorbent	PU-8/TS	1 Batch
Valves
1	H.C. On-Off Butterfly	DN450	2 Pieces
2	H.C. On-Off Butterfly	DN400	4 Pieces
3	H.C. On-Off Butterfly	DN250	2 Pieces
4	H.C. Control Butterfly	DN200	1 Piece
5	H.C. Control Butterfly	DN200	2 Pieces
6	H.C. Control Butterfly	DN150	1 Pieces
7	Special Vent Valve	DN200	1 Piece
8	Special Hand Valve	/	1 Batch
Non-standard
1	Radial Flow Adsorption	Φ3200(Q345R)	2 Pieces
2	Oxygen Buffer Tank	40m3(Q345R)	2 Pieces
3	Water Tank	0.5m3(SUS304)	1 Piece
4	Blower Heat Exchanger	Q345R	1 Piece
5	Separation Muffler	Φ1600(Q345R)	1 Piece
Instrument and Control System
1	Control System	/	1 Set
2	Instrument	/	1 Set
Electrical Control
1	High Voltage PT Cabinet	/	1 Piece
2	High Voltage Inlet Cabinet	/	1 Piece
3	High Voltage Outlet Cabinet	/	1 Piece
4	High Voltage Soft Start Cabinet	/	1 Piece
5	Uninterrupted Operation Power Supply	3kVA	1 Piece
6	Low Voltage Power Distribution Cabinet	/	1 Piece
7	MCC Cabinet	/	2 Pieces
8	Stainless Operation Cabinet	/	2 Pieces
9	Power Distribution Room	/	1 Room
Oxygen Pressure System
1	Oxygen Compressor	ZW-24/2.5	1 Piece
2	Buffer Tank	20 m3 (Q345R)	1 Piece
Instrument Air and Water
1	Instrument Air Tank and Purification System	/	1 Set
2	Close-circuit Cooling Tower	/	1 Piece
Engineering Services
1	Installation Materials	Stainless Pipes	1 Batch
2	Transport & insurance	/	/
3	Engineering design	/	/
4	Proprietary technology	/	/
Random Spare Parts
1	Roots Blower Spares	/	1 Set
2	Valve Spares	/	1 Set
