Oil-lubricated Acetylene Gas C2H2 Reciprocating Compressors
|

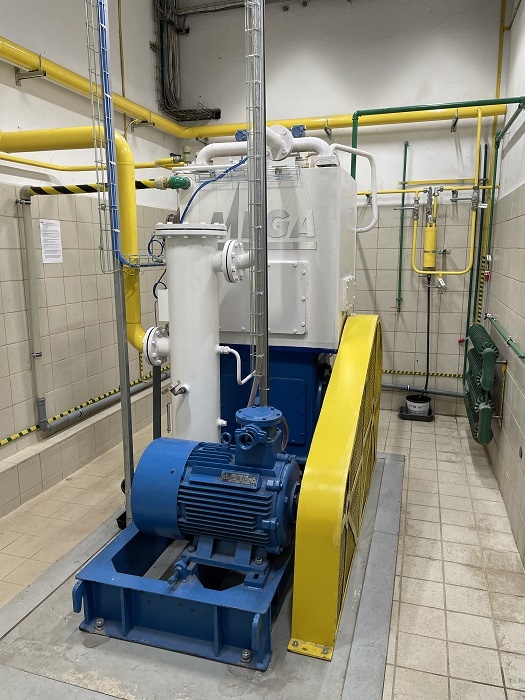

2Z-0.8/25 C2H2 acetylene compressor (skid type, all the parts are in the same skid except the electric control cabinet, this cabinet should be at control room) |
||
|
A. |
Bare C2H2 compressor |
|
|
1 |
Model |
2Z-0.8/25 |
|
2 |
Type |
Vertical type, two columns three stages, differential action, water cooled, C2H2 compressor. All the parts are in the same skid except the electric control cabinet. |
|
3 |
Compressed medium |
C2H2 (Acetylene gas) |
|
4 |
Capacity |
0.8 m3/minute (48 m3/hr) |
|
5 |
Suction pressure |
0.001~0.002Mpa (G) |
|
6 |
Discharge pressure |
Three stages: 2.5 MPa (G) |
|
7 |
Suction temperature |
≤35°C |
|
8 |
Discharge temperature |
≤90°C |
|
9 |
Shaft power |
≤9.5KW |
|
10 |
Stoke of piston |
114mm |
|
11 |
Rotational speed of crankshaft |
260r/min |
|
12 |
Lubricant temperature |
≤70°C |
|
13 |
Water inlet temperature |
≤30°C |
|
14 |
Water outlet temperature |
≤40°C |
|
15 |
Consumption of cooling water |
Bare compressor≤1.5t/h |
|
16 |
Consumption of oil |
≤ 60 g/h |
|
17 |
Driven way |
Driven Belt |
|
18 |
Overall dimension |
1900mmx900mmx2250mm（LxWxH） |
|
19 |
Weight of compressor unit |
~1550 kg |
|
B． |
Motor of the C2H2 compressor |
|
|
1 |
Type |
Low voltage Ex-proof motor |
|
2 |
Model |
YB160L-6 |
|
3 |
Rated voltage |
11KW |
|
4 |
Rotational speed |
970r/min |
|
5 |
Voltage |
415V |
|
6 |
Frequency |
50Hz |
|
7 |
Ex-proof level |
dⅡCT4 |
|
C. |
Explosion-proof operation column (local Ex-proof on-off) |
|
|
D． |
Electric control cabinet (non ex-proof) |
|
|
1 |
Model |
Cabinet |
|
2 |
Type |
XHS-11-3A |
|
E． |
C2H2 acetylene gas inlet filter |
|
|
1 |
Model |
|
|
F |
Cooler |
|
|
G． |
Attached special tools |
|
|
H． |
Attached special spare parts, accessories |
|
|
I． |
Attached documents |
|
