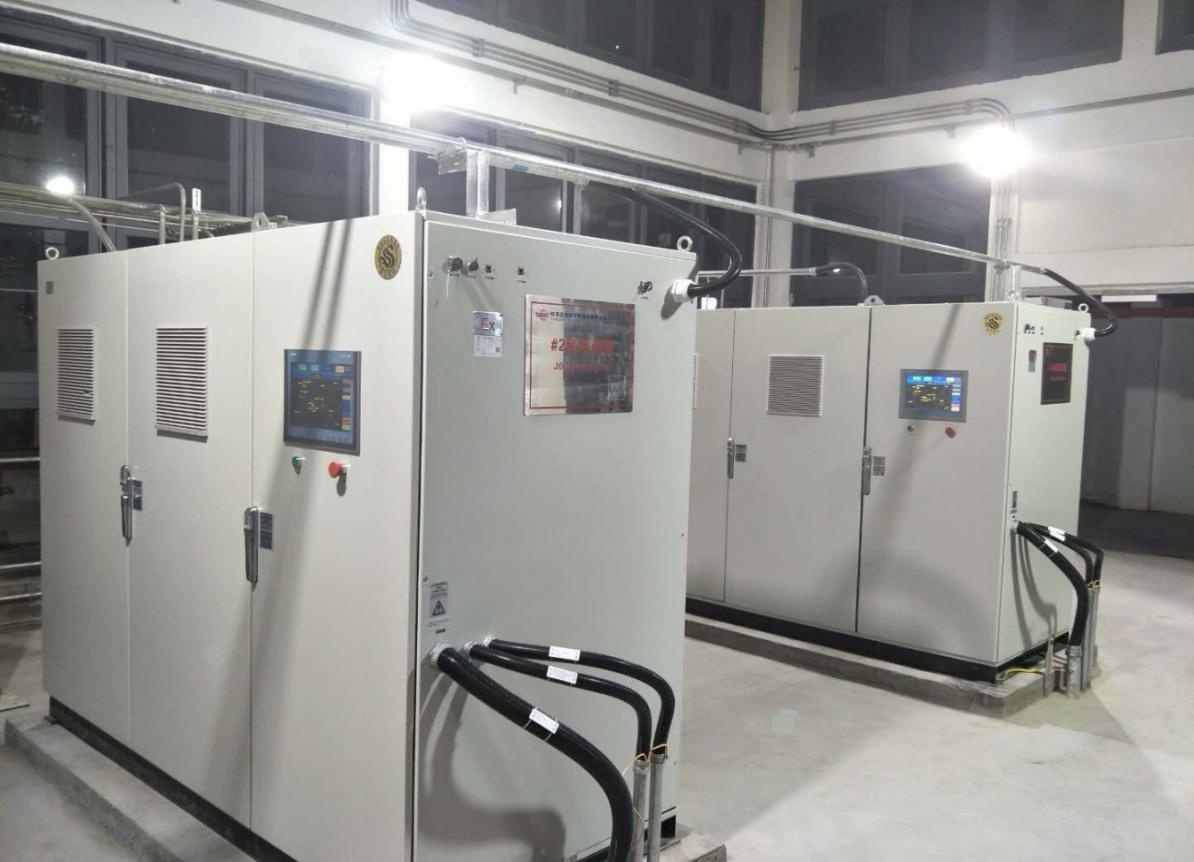

0.5~500Nm3/h 99.999% H2 Purity PEM Water Electrolysis Hydrogen Generator
PEM Water Electrolysis Hydrogen Generator
We have been dedicated to the development and production of PEM (Proton Exchange Membrane) electrolytic pure water hydrogen production equipment. The characteristics of PEM electrolysis pure water hydrogen production technology are green environmental protection, streamlined, efficient, stable and reliable. At present, the QLS-H and QLS-M series hydrogen production stations developed by our company based on this technology have been widely used in high-end experiments because of the advantages of high purity of hydrogen produced, high pressure of straight out hydrogen, fast startup response, and long life. Laboratories, thermonuclear power plants, high-end chip manufacturing, lens surface treatment, manned aerospace, nuclear submarines, hydrogen fuel cell vehicles, hydrogen refueling stations, renewable energy hydrogen storage, and other fields.
PEM Pure water electrolytic hydrogen production equipment is mainly used in the following areas:
1. Gas source of high-end laboratory GC and other instruments;
2. Hydrogen fuel cell vehicles, hydrogen sources for hydrogen fuel cell civil systems;
3. Semiconductor, high-end chip and other electronics manufacturing industries;
4. Wind, water and renewable energy coupled with hydrogen production and energy storage;
5. Cooling reduction protection of generators in the field of thermonuclear power;
6. Atomic energy, heavy hydrogen separation in nuclear industry and water treatment in nuclear power plants;
7. Hydrogenation reaction in the fields of chemical industry and oil processing;
8. Hydrogen molecular medicine and health;
9. Metal heat treatment and precious metal processing;
10. Military nuclear submarine, manned space life support system, military weather balloon detection.
| Model and Parameter | H0.5 | H2 | H4 | H5 | H6 | H10 | H20 | H100 | M200 | M500 |
| Hydrogen Output Rate (Nm³/h) | 0.5 | 2 | 4 | 5 | 6 | 10 | 20 | 100 | 200 | 500 |
| Purity (%) | ≥99.999; (N₂<2ppm; O₂<1ppm) | |||||||||
| Dew point (℃) | < -65 | |||||||||
| Adjustable range (%) | 0-100 | |||||||||
| Output pressure (Mpa) | 0-3.0 (Adjustable) | |||||||||
| Water consumption (L/h) | 0.5 | 2 | 4 | 5 | 6 | 10 | 20 | 100 | 200 | 500 |
| Operating tempreture (℃) | 60±5 | |||||||||
| Environmental tempreture (℃) | 5-45 | |||||||||
| Process control | PLC | |||||||||
| Safety setting | Full-automatic Interlocking | |||||||||
| Water qality requirement | GB/T37562-2019; Dionized water, Water conductivity rate: ≤0.1 uS/cm | |||||||||
| Electrolysis power (KW.h/m3) | 4.5-5 | |||||||||
| Dimension(mm) | 1450*1000*1650 | 2300*1000*1950 | 2700*1200*1930 | Modularization | ||||||
| Power distribution capacity (KVA) | 7 | 15 | 35 | 47 | 56 | 88 | 185 | 700 | 1400 | 3200 |
| Power supply parameters | 380-440VAC 3 phase five-wire | |||||||||
| Communication method Modbus TCP/IP communication protocol or RTU | ||||||||||
