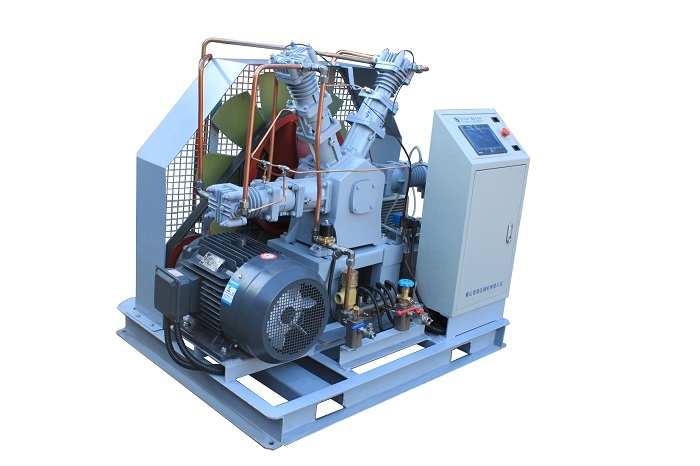

30Nm3/h 15Mpa~ 20MPa Oil-free Reciprocating Oxygen/ Nitrogen/ Argon Gas Compressors
Oil free gas compressors use various technologies that bypass the need for oil. In oil lubricated compressors, oil is used in the compression chamber to cool and seal the air. In an oil-free compressor, no matter what type of technology is being used, no oil will ever be used in the compression chamber.
Technical parameters of oil-free reciprocating oxygen/ nitrogen/ argon Compressors
Model |
Inlet pressure Bar |
Outlet pressure Bar |
Capacity |
Power |
Inlet |
Outlet |
Dimension |
Weight |
Speed |
WWY-(1-5)/4-150/200 |
4.0 |
150/ 200 |
5 |
4.0 |
Rc1/2 |
G5/8 |
1350 *850 *1100 |
380 |
470 |
WWY- 10/4-150/200 |
4.0 |
150/ 200 |
10 |
5.5 |
Rc1/2 |
G5/8 |
1350 *1050 *1100 |
410 |
470 |
WWY- 15/4-150/200 |
4.0 |
150/ 200 |
15 |
7.5 |
Rc1/2 |
G5/8 |
1350 *1050 *1100 |
420 |
640 |
WWY-20/4-150/200 |
4.0 |
150/ 200 |
20 |
11 |
Rc1/2 |
G5/8 |
1350 *1050 *1100 |
430 |
580 |
WWY-25/4-150/200 |
4.0 |
150/ 200 |
25 |
11 |
Rc1/2 |
G5/8 |
1350 *1050 *1100 |
430 |
640 |
WWY-30/4-150/200 |
4.0 |
150/ 200 |
30 |
15 |
Rc1/2 |
G5/8 |
1350 *1050 *1100 |
450 |
470 |
WWY-35/4-150/200 |
4.0 |
150/ 200 |
35 |
15 |
Rc1/2 |
G5/8 |
1350 *1050 *1100 |
450 |
470 |
WWY-40/4-150/200 |
4.0 |
150/ 200 |
40 |
15 |
Rc1/2 |
G5/8 |
1350 *1050 *1100 |
450 |
580 |
SWY- 45/4-150/200 |
4.0 |
150/ 200 |
45 |
18.5 |
Rc1 |
G5/8 |
1450 *1100 *1250 |
520 |
580 |
SWY- 50/4-150/200 |
4.0 |
150/ 200 |
50 |
18.5 |
Rc1 |
G5/8 |
1450 *1100 *1250 |
520 |
580 |
SWY- 55/4-150/200 |
4.0 |
150/ 200 |
55 |
18.5 |
Rc1 |
G5/8 |
1450 *1100 *1250 |
520 |
580 |
SWY- 60/4-150/200 |
4.0 |
150/ 200 |
60 |
22 |
Rc1 |
G5/8 |
1450 *1100 *1250 |
540 |
640 |
SWY- 65/4-150/200 |
4.0 |
150/ 200 |
65 |
22 |
Rc1 |
G5/8 |
1450 *1100 *1250 |
540 |
720 |
SWY- 70/4-150/200 |
4.0 |
150/ 200 |
70 |
22 |
Rc1 |
G5/8 |
1450 *1100 *1250 |
540 |
720 |
SWY-75/4-150/200 |
4.0 |
150/ 200 |
75 |
22 |
Rc1 |
G5/8 |
1450*1100*1250 |
540 |
720 |
Notes: More specification of the oil-free compressors are available based on clients‘ special requirement.
The basic parameters listed in above table can be confirmed according to the actual working conditions.
- Touch screen, PLC control
- Remote control (optional)
- Cooling mode: air cooling + water cooling (with water tank and circulating pump, no external pipeline is required)
- Circular scrolling reminder for faulty items
- Inter stage pressure, temperature, overload, overheating, cooling water fault shutdown
