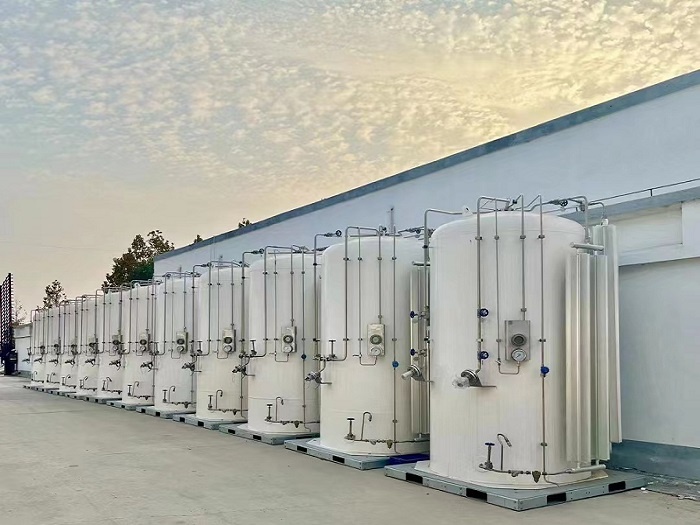

Microbulk tank is essentially a bulk storage system in miniature. A Microbulk tank delivery system replaces high-pressure or liquid cylinders with a stainless steel, low pressure storage tank. Minwen's mobile microbulk tanks ranges from 1,000 liters (1m3) to 5,000 liters (5m3), with low, medium and high pressure to meet clients' specific demands.
|
Specification For 3m3 (3000 liters) LOX LIN LAr LCO2 LNG Microbulk Tanks |
||||||
|
Model |
CDLS-3/1.6 |
CDLS-3/2.6 |
CDLS-3/3.4 |
CDLS-3/1.6 |
CDLS-3/2.2 |
|
|
Pressure rating |
Low pressure |
Medium pressure |
High pressure |
Low pressure |
Medium pressure |
|
|
Surface treatment |
Polish / Painting |
Polish / Painting |
Polish / Painting |
Polish / Painting |
Polish / Painting |
|
|
Thermal-insulating type |
High vacuum multi-layers thermal-insulating |
|||||
|
Base-support construction |
Steel bearing suitable for forklift usage |
|||||
|
Total volume (m3) |
3.18 |
3.18 |
3.18 |
3.34 |
3.18 |
|
|
Effective volume (m3) |
3 |
3 |
3 |
3 |
3 |
|
|
Maximum working pressure (MPa) |
1.6 |
2.6 |
3.4 |
1.6 |
2.2 |
|
|
Design standard |
GB/T 150.1~GB/T 150.4; GB/T 18442; Q/NMHJ 20-2017 |
|||||
|
Medium and maximum |
LO2 (kg) |
3420 |
3420 |
3420 |
/ |
/ |
|
LN2 (KG) |
2430 |
2430 |
2430 |
/ |
/ |
|
|
Lar (KG) |
4230 |
4230 |
4230 |
/ |
/ |
|
|
LCO2 (KG) |
/ |
/ |
/ |
/ |
3087 |
|
|
LNG (KG) |
/ |
/ |
/ |
1278 |
/ |
|
|
Daily Evaporation Rate (LN2) |
≤0.6% |
≤0.6% |
≤0.6% |
≤0.6% |
≤0.6% |
|
|
Gas Supply Capacity (Nm3/h) |
40 |
40 |
40 |
40 |
40 |
|
|
Weight of empty storage tank (kg) |
1849 (SS) |
1983 (SS) |
2223 (SS) |
1893 (SS) |
2394 (SS) |
|
|
1973 (CS) |
2023 (CS) |
2263 (CS) |
1936 (CS) |
2428 (CS) |
||
|
Dimension (mm) |
1850*1850*2945 |
1850*1850*2945 |
1850*1850*2945 |
1850*1850*3050 |
1850*1850*2945 |
|
|
Note: CS outer shell needs to be sand-blasted and painted. |
||||||
