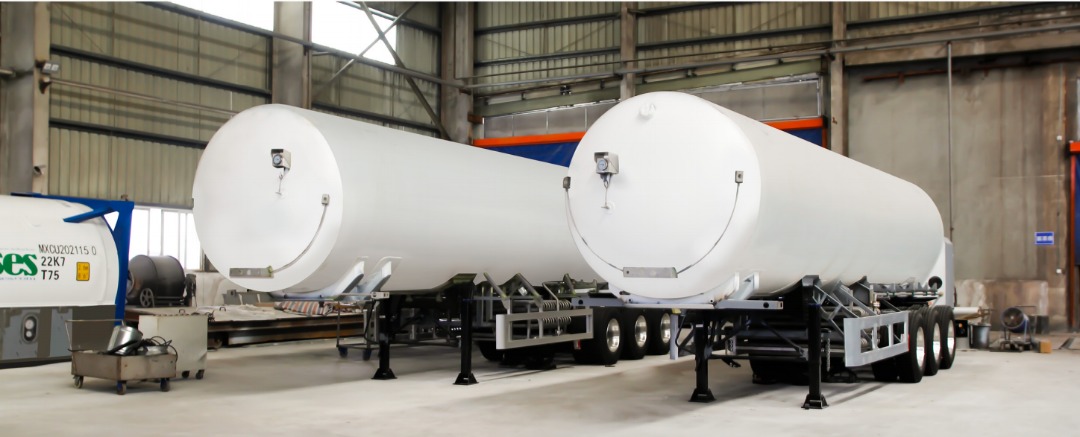

LNG Semi-trailer Lorry Tank
Specification for 52m3/ 0.8MPa LNG semi-trailer
1. Medium: Liquid natural gas (LNG)
2. Capacity: 52m3 or as required
3. Working pressure: 0.8MPa or as required
4. Working temperature: -196C to +50C
5. Main material: SS304/ Q345R (carbon)
6. Vacuum design year: 5 years
7. Design life: 10 years (for trailer)/ 15 years (for tank)
8. Dimension (mm): 13220x2540x4000
9. Tare weight: 15950kgs
10. Full weight: 24050kgs
11. Max gross weight: 40000kgs
